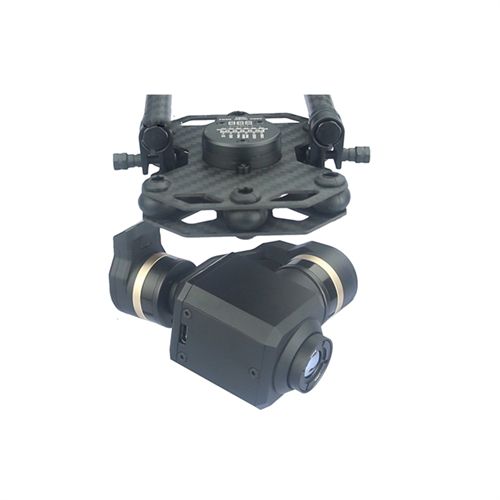

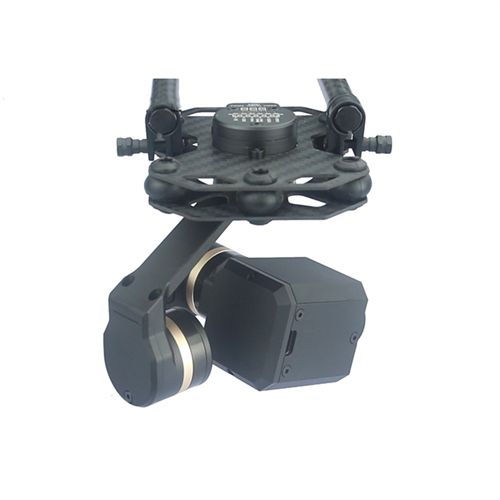

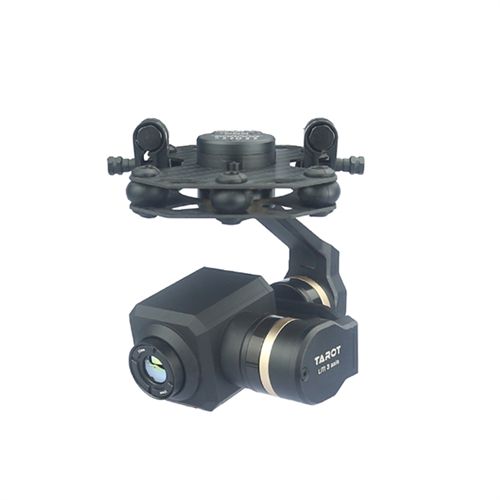

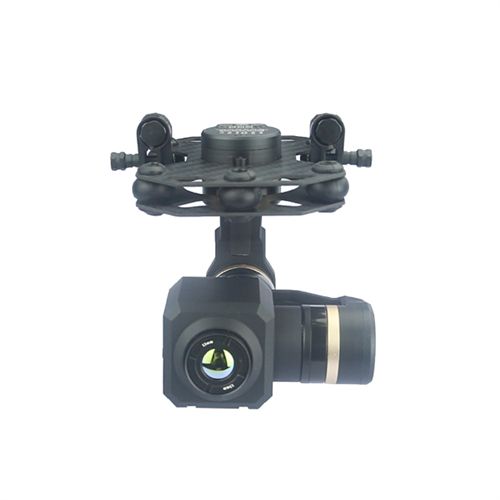

Tarot 3 Axis Gimbal 640 Thermal Imaging Camera TL3T20

Product Details:

Functional indicators
- Video output: AV output PAL system (does not support internal recording)
- Support control type (PTZ): PWM, S.Bus

Gimbal technical indicators
- Input power: 3S-6S Lipo (11V-26V)
- Working current: 30mA (@ 25V); 50mA（@12V）
- Locked rotor current: 350mA (@ 25V); 700mA（@12V）
- Working ambient temperature: - 20 ℃~+50 ℃
- Weight: 278g

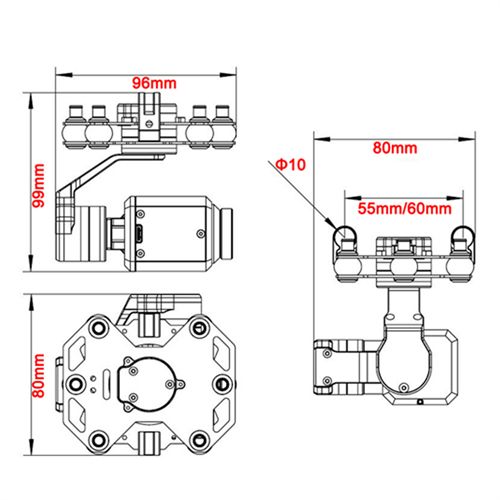

- Maximum overall dimension (length, width and height): 96mm * 80mm * 99mm
- Maximum speed: pitch (± 200 degrees/second); Roll (± 200 degrees/second); Pointing (± 200 degrees/second)
- Controllable rotation range: pitch (- 120 degrees~+80 degrees); Direction (- 125 degrees to+125 degrees)
- Attitude control accuracy: ± 0.02 degrees
- Assembled camera model: 640 thermal imaging camera

Camera technical indicators
- Array size: 640 * 512
- Lens type: 13mm F1.2
- Focus type: no heat
- Angle of view (horizontal × Vertical): 33 ° × 26°
- Instantaneous field angle: 0.95 mrad
- Pixel spacing: 12 μ m
- Detector frame rate: 50Hz
- Response band: 8 ～ 14 μ m
- Noise equivalent temperature difference: ≤ 50mK@25 ℃, F # 1.0 (≤ 40mK optional)
- TEC: None
- Brightness and contrast adjustment: manual mode/automatic mode/linear mode
- Polarity: black heat/white heat
- False color: support
- Crosshairs: displaying/hiding/moving
- Image processing: Shutterless I, nonuniformity correction, digital filtering noise reduction, digital detail enhancement
- Image image: left/right/up/down/diagonal
- Camera debugging interface: Type-c
- Camera debugging software: PC Computer terminal (Win10 and above, drive free)

Item Packing:

640 Thermal Imaging 3 Axis Gimbal x1
